Updated method for electrical resistance input of conductor RSS icon

The electrical resistance of cable conductors can now be modelled in the cable editor in three different ways to better illustrate how the value is calculated / provided.

Posted on August 23, 2019
Categories: New feature



This updated method makes it possible to model the electrical resistance of the conductor independent on whether automatic or user defined conductor material characteristics (temperature coefficient, thermal resistivity, and specific heat capacity) are selected. Three different ways of electrical resistance input for conductors are now possible:

1. Use standard values

This will take the DC resistance at 20°C for the corresponding cross-section (mm²) from the IEC 60228 standard or different American standards for AWG/kcmil as described in the documentation.

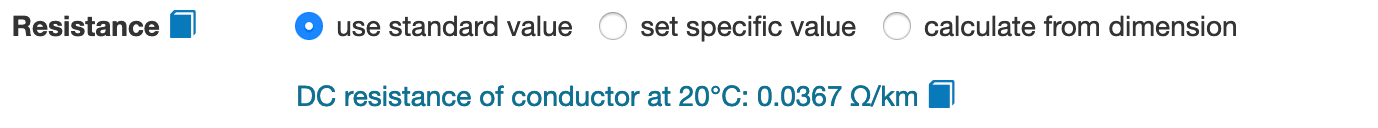

Standard value input

2. Set a specific value

Directly specify an electrical DC resistance at 20°C. Input in Ω/km.

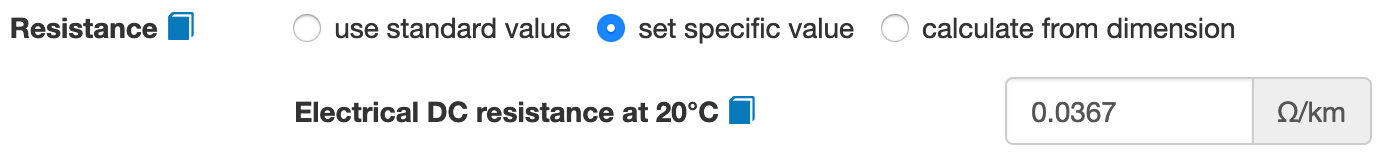

Specific value input

3. Calculate the value based on a specific electrical resistivity

Calculate the value based on the conductor area and the specific electrical resistivity at 20°C provided in Ω.m.

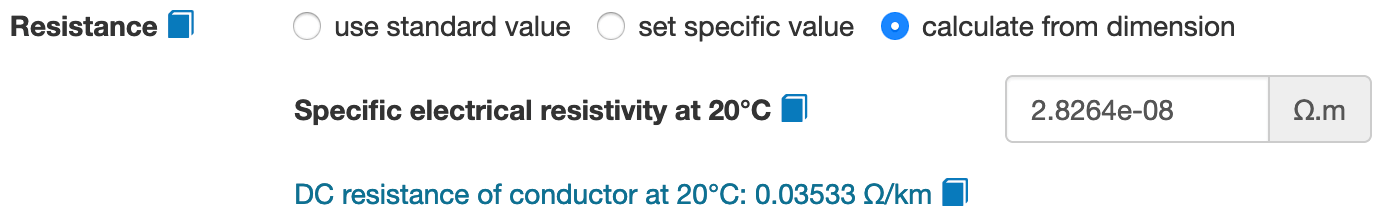

Calculated value input
