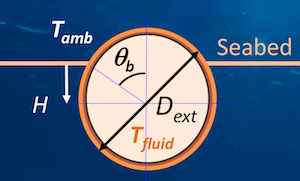

Distance pipe center—ground

Symbol
$H$
Unit
m
Formulas
$\frac{L_{c}}{1000}$
Related
$L_{c}$
Depth of laying of sources [mm]
Used in
$\alpha_{0}$
Constant α burial depth
$\beta_{0}$
Constant $\beta_0$ (Ovuworie)
$\beta_{b}$
Angle of exposed wetted surface of pipe [rad]
$C_{g1}$
Factor C1 pipe
$C_{g2}$
Factor C2 pipe
$h_{buried}$
Heat transfer coefficient pipe fully buried [W/(K.m$^2$)]

Presentation by E. Zakarian et al. "A Holistic Approach to Steady-State Heat Transfer from Partially and Fully Buried Pipelines" (2012)
